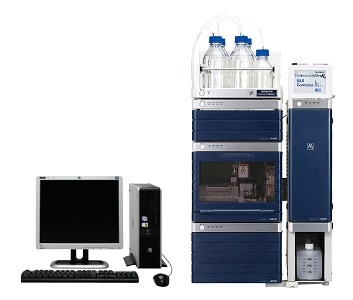

Hitachi Ultra-High Performance Liquid Chromatograph ChromasterUltra Rs

Visualize the future



  •  High resolution analysis is achieved through the highest pressure system on the market (140MPa, 1400 Bar) combined with the new high resolution LaChromUltra II column (250 mm x 3 mm, 1.9 μm particle size).
  • High sensitivity and high resolution stand side by side thanks to the total reflection capillary flow cell design.
  • A system compatible with both HPLC and UHPLC analyses
  • Features designed for operational excellence including the MEM column fitting with 140 MPa system pressure tolerance, the built-in Waste Tank, etc.

Product Description

ChromasterUltra Rs, an ultra-high performance liquid chromatograph, provides the ultimate in high performance, high resolution, and high sensitivity analysis that are becoming requirements for research and development in pharmaceutical and chemical fields.





High Resolution

The newly developed LaChromUltra II column is the longest UHPLC column at 250 mm in length. When used together with the reduced volume system ChromasterUltra Rs, it produces an exceptional high-separation performance.

The combination of this column and the ChromasterUltra Rs enables system pressure tolerance of 140 MPa with 50,000 or more theoretical plates per column.





High Sensitivity

A total-reflection capillary flow cell is incorporated into the diode array detector to answer to the increasing need for high-sensitivity analysis of hazardous substances, genotoxic impurities, etc. A high-sensitivity flow cell with an optical path length of 65 mm is also available. In addition to the capability of high-sensitivity analysis, carryover is reduced through the use of a double-corkscrew mixer.





Usability



GUI Controller (optional)

All modules can be controlled from the Graphical User Interface (GUI) controller.
The GUI is comprised of a color LCD monitor (5.7-inch color TFT display with LED back-light) and a touch panel made for easy viewing and simple operation.
Up to 10 programs including a timer function, pre-analysis tasks (Wakeup), and post-analysis tasks (Sleep) can be created for a system.
The GUI controller enables you to check the status of consumables usage for all units that are connected to the system.



MEM Column fitting (optional)

Hitachi’ s own Moment Enhancing Mechanism (MEM) column fitting is a simple but exciting new development. The finger-tight piping integral fitting, which has a very small dead volume, is capable of safely tolerating system pressures as high as 140 MPa.



Ultra-High Performance Liquid Chromatograph ChromasterUltra Rs



For more information about ChromasterUltra Rs
